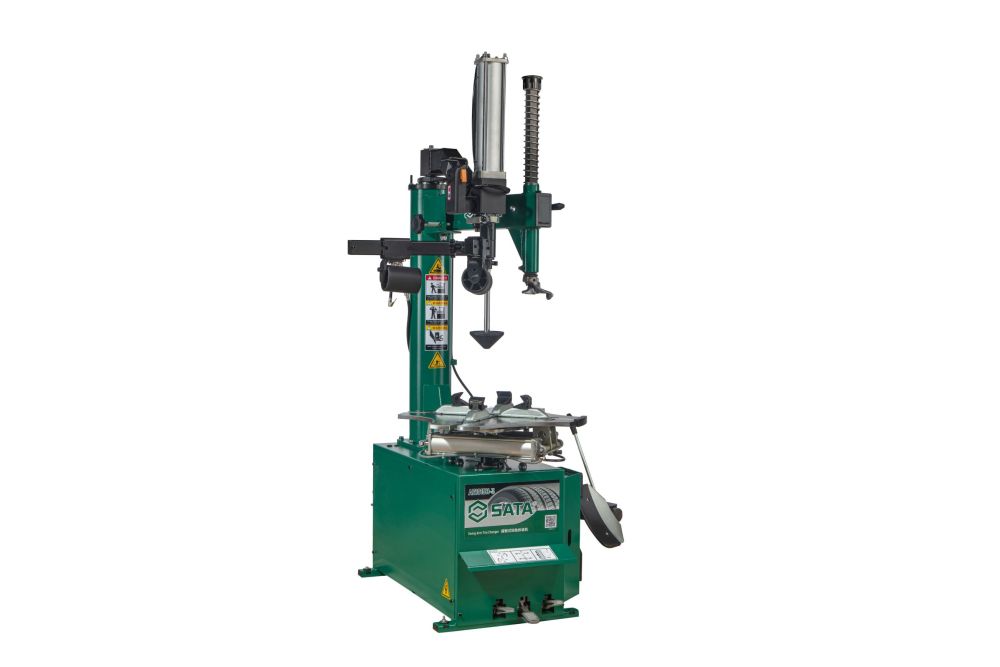

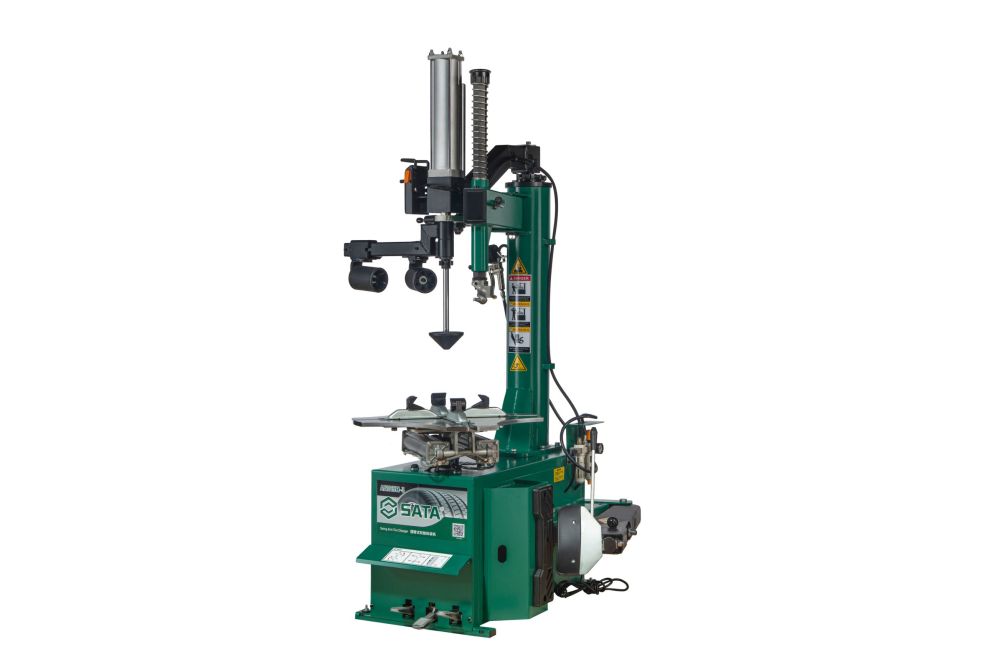

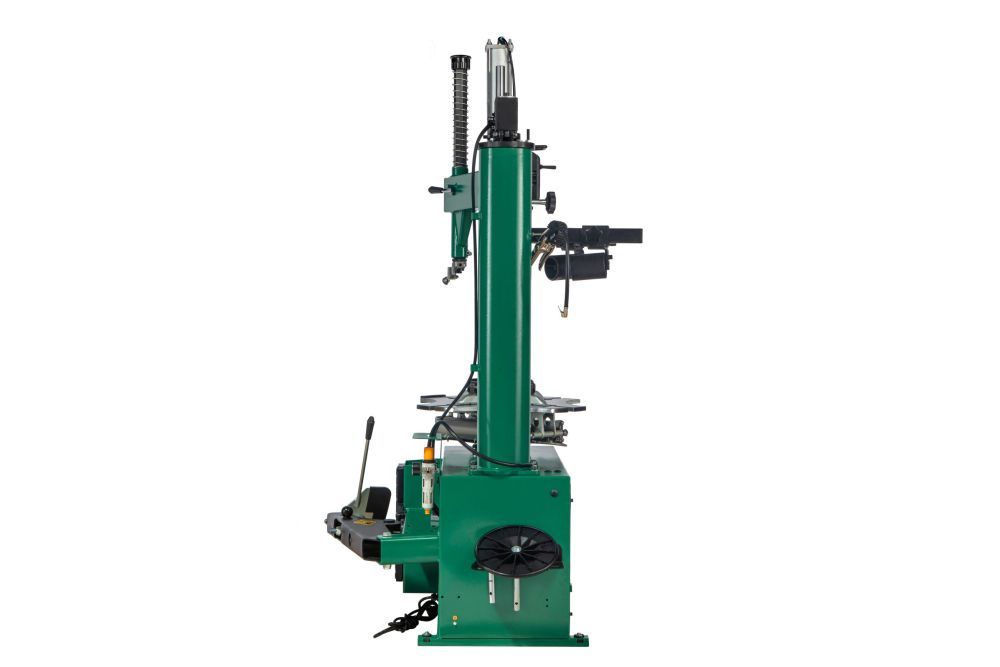

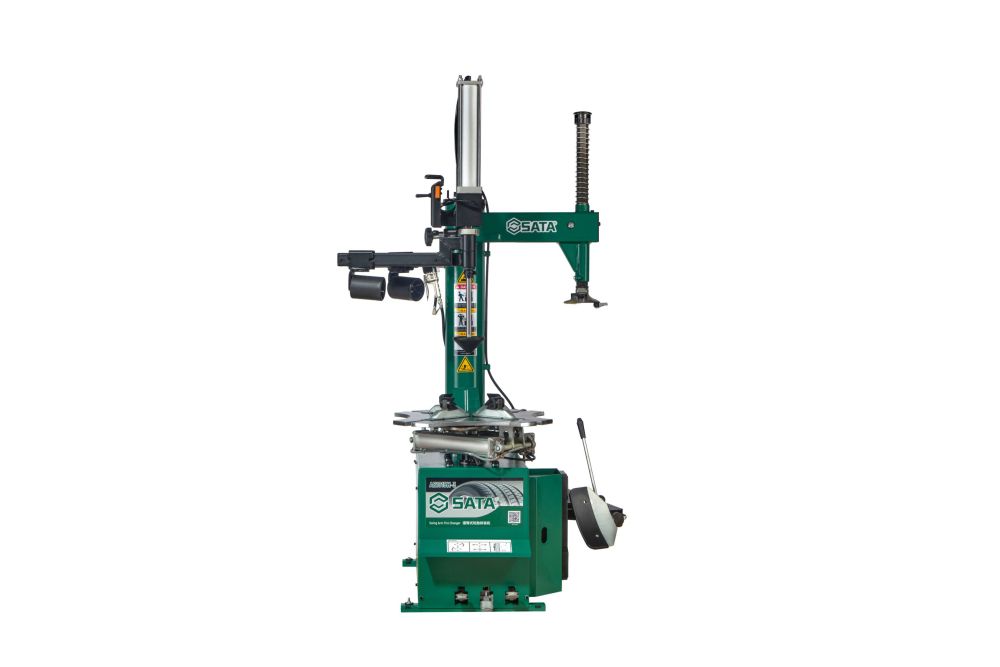

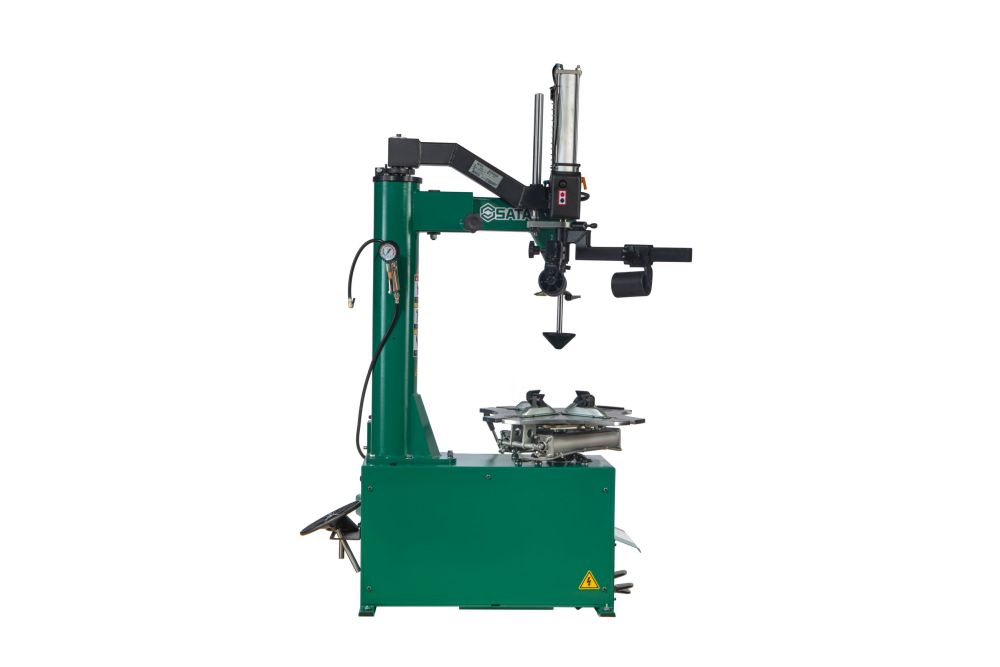

AE1015H-3 SATA Swing Arm Tire Changer with Helper (380V)
No.AE1015H-3
SKU: SCAE1015H-3
Introduction

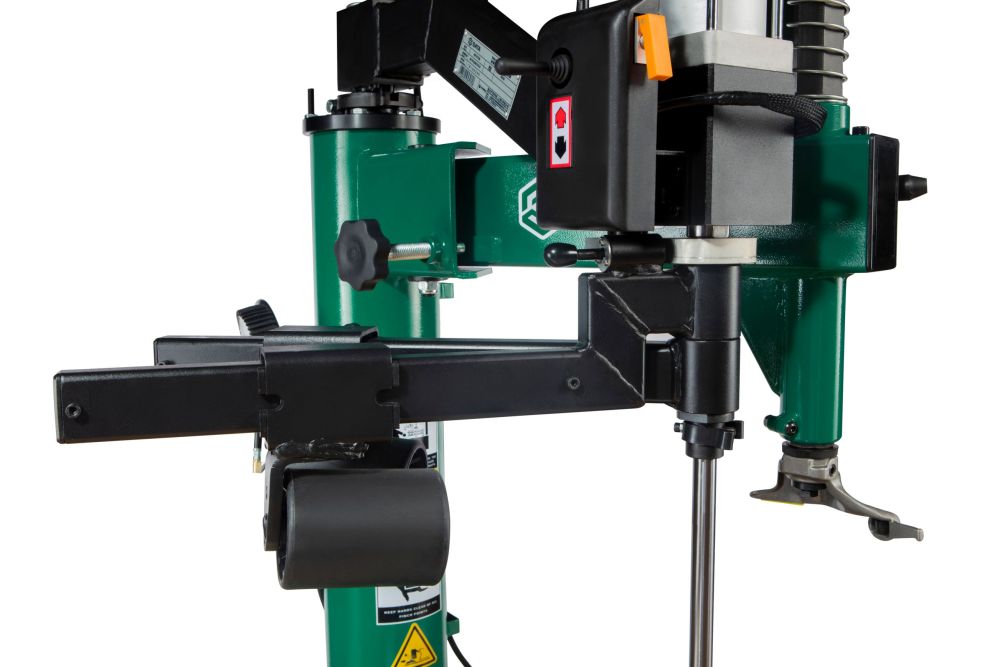

| ● | Suspended auxiliary arm, widely applicable and easy to use | ||||
| ● | Alloy steel jaws plus protective cover, effectively avoiding damages to the rim | ||||

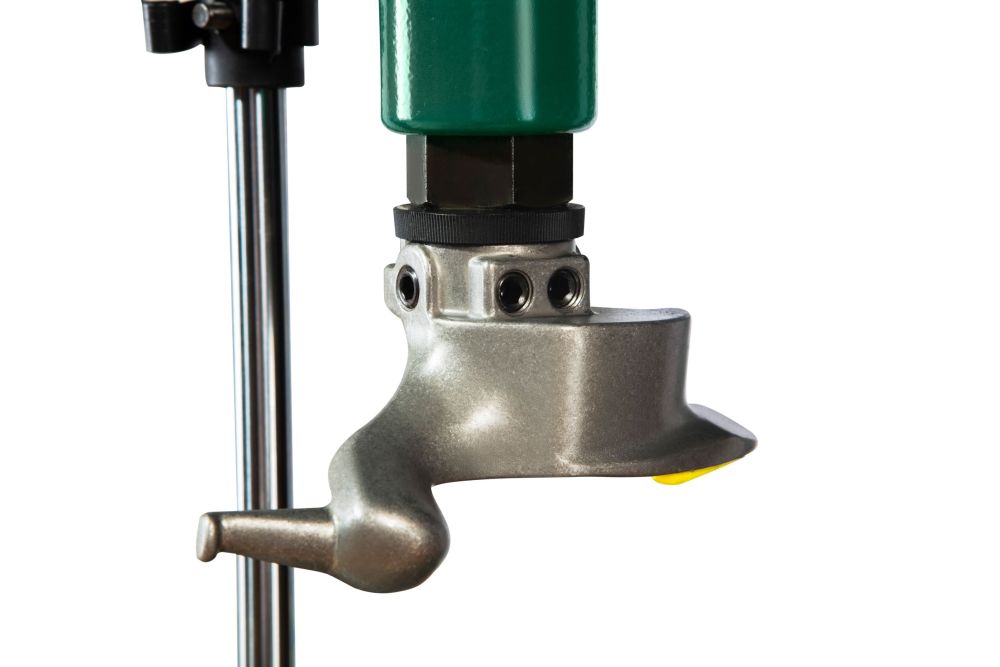

| ● | Alloy steel birdhead-shaped puller, ensuring a longer service life | ||||

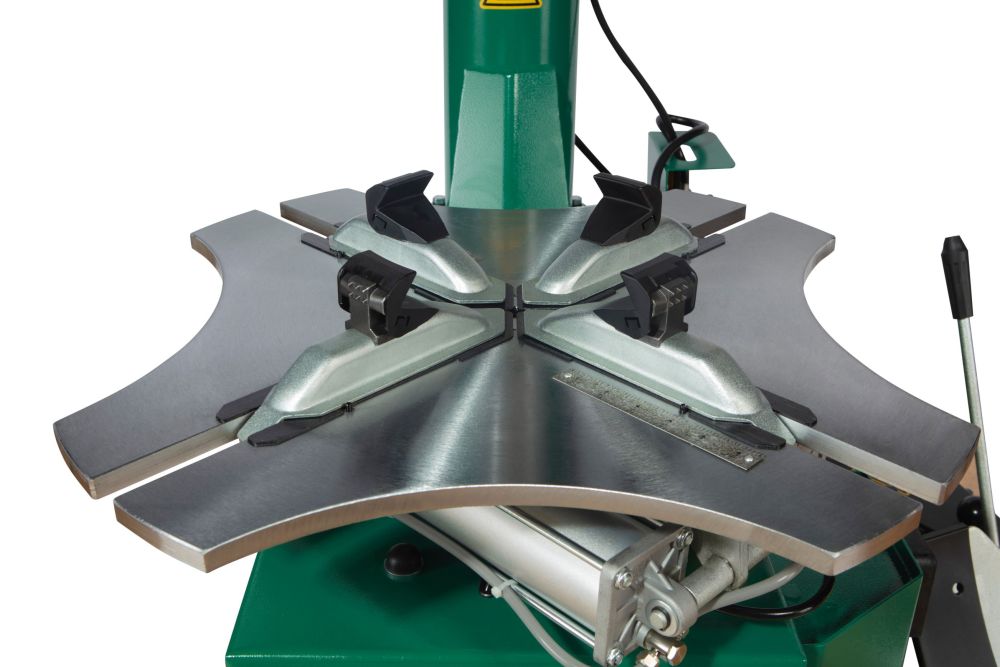

| ● | Torx large disc with wear resistant gasket and scale, allowing accurate alignment | ||||
| ● | Chassis stepping function, enabling stop in multiple positions and improving the clamping efficiency | ||||
| ● | Stainless steel large cylinder, highly resistant to corrosion | ||||
| ● | Rear cover with quick exhaust valve as standard configuration, improving bead-breaking efficiency | ||||
| ● | Bead breaker with two-position regulation, applicable in a wider range | ||||

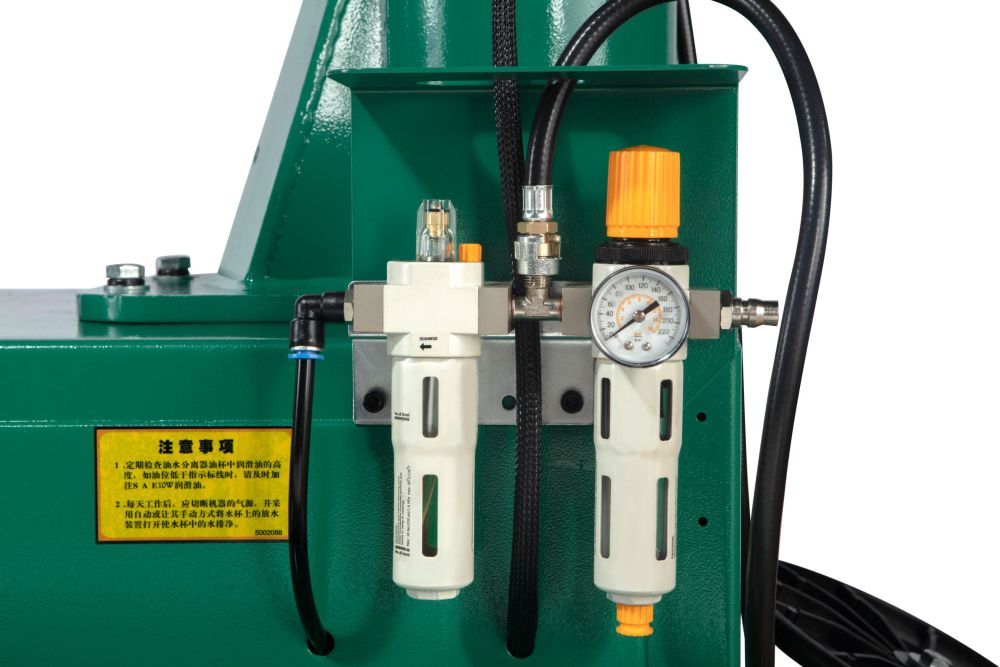

| ● | High pressure resistant oil-water separator with metal protection cover, not easy to be damaged |
(0 Reviews)
| Product No | AE1015H-3 |
| Tire width | 3"-13" |
| Internal support hub diameter | 12"-24" |
| Gross/Net weight | 275/235KG |
| Large disk size | 21" |
| Diameter of the outer clamping rim | 10"-21" |
| Oil-water separator pressure resistance | 12KGf/CM2 |
| Operating air pressure | 8-10bar |
| Warranty Terms | 1 year (except consumable parts) |
| Large disk rotation speed | 6.5rpm |
| Push-pull force of large cylinders | 2100KGf |
| Operating noise | <70db |
| Maximum tire diameter | 39" (1010MM) |
| Package dimensions | 1180x920x1100MM |
