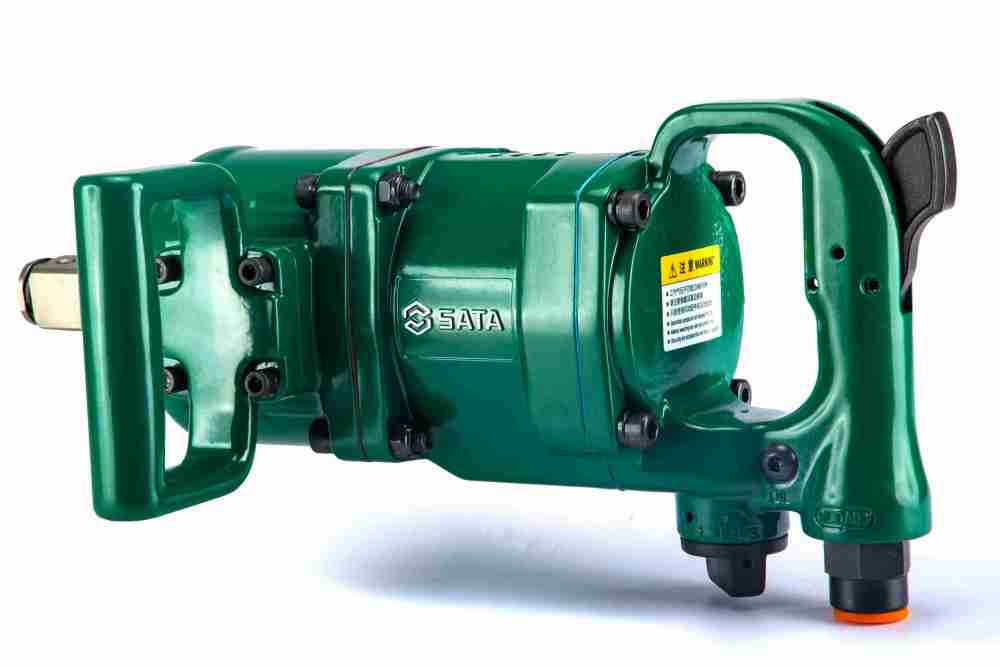

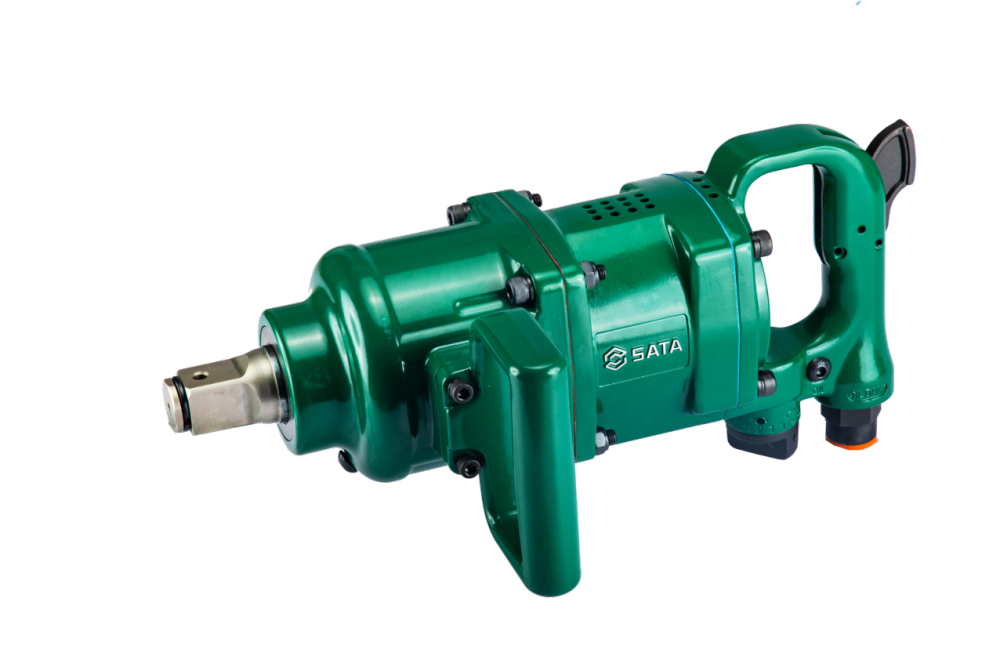

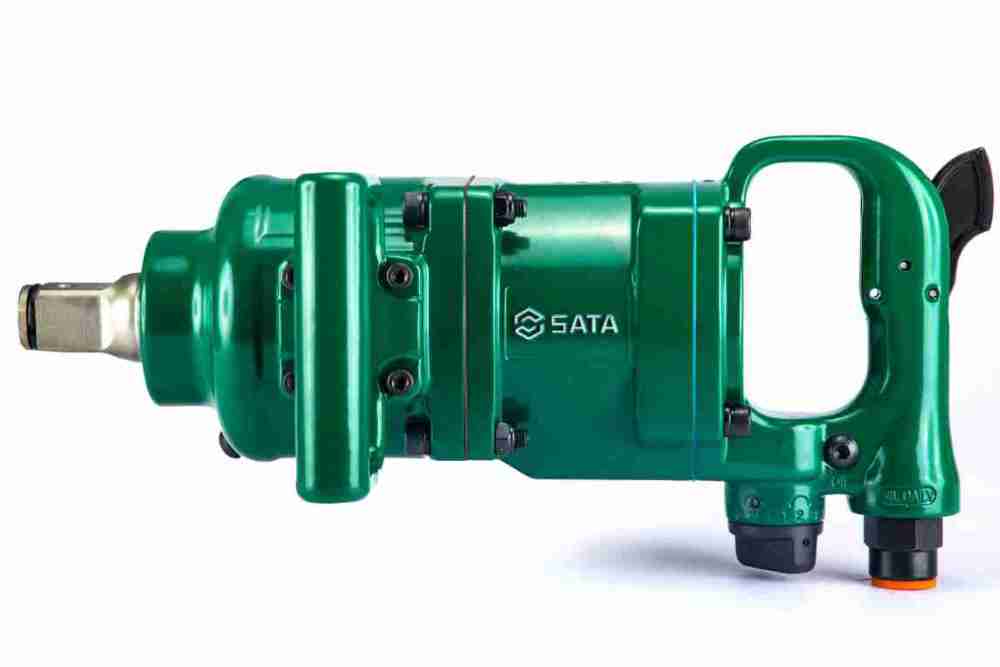

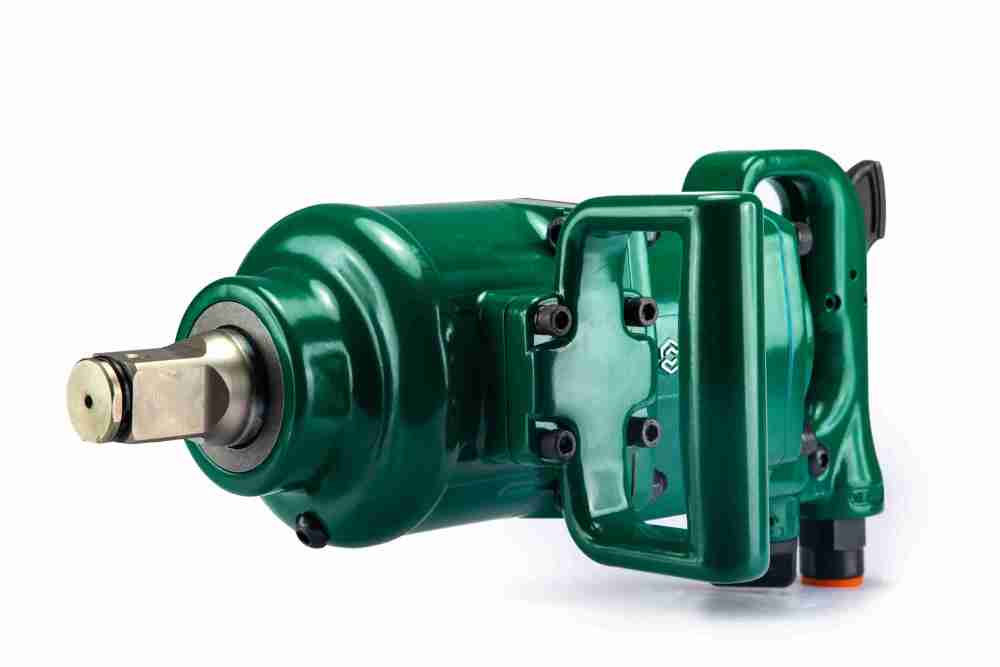

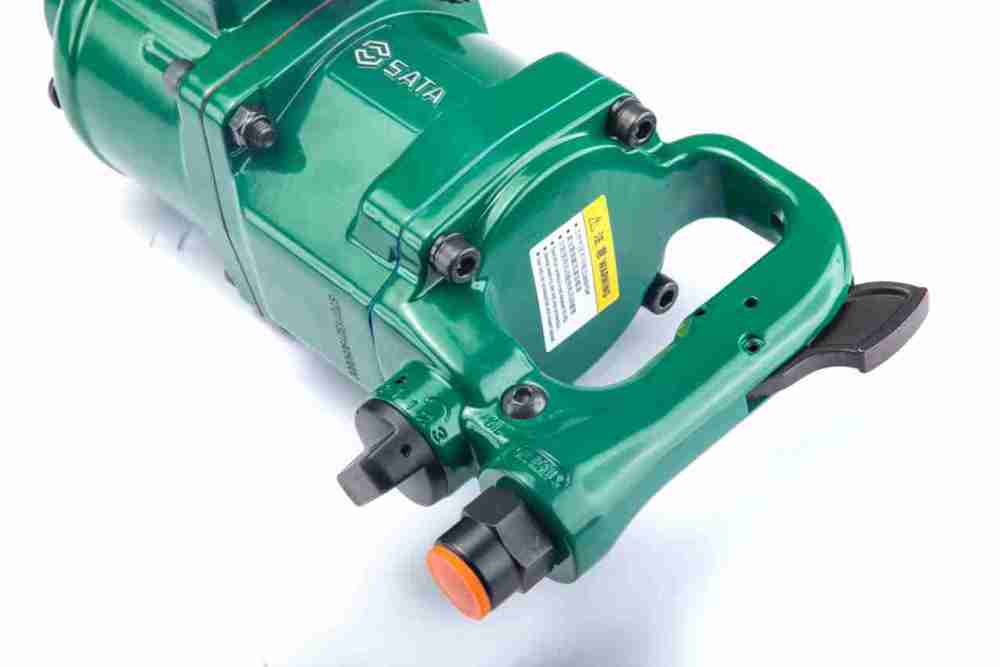

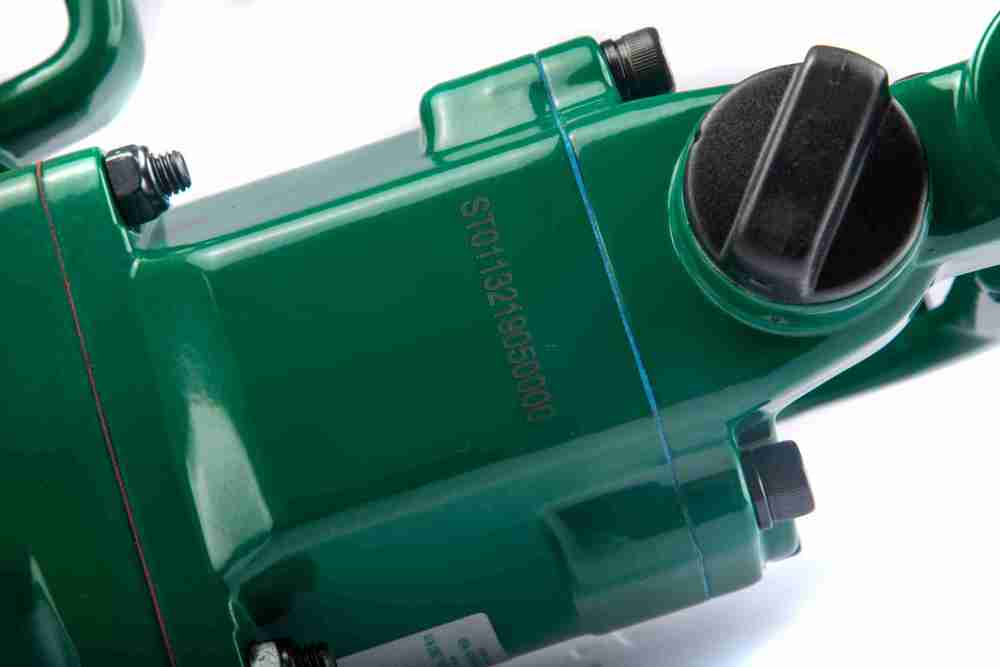

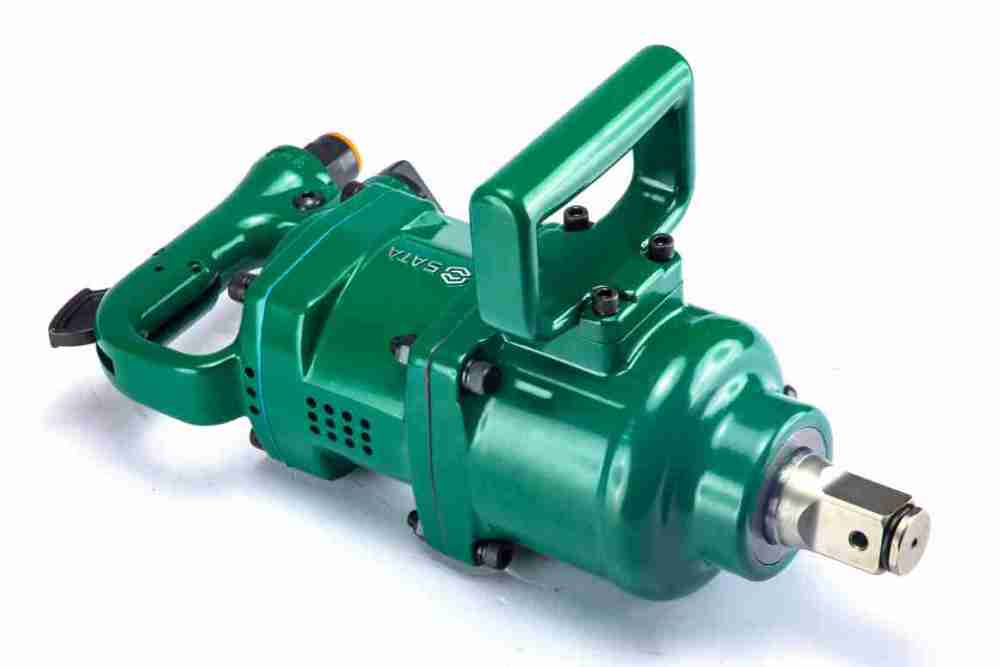

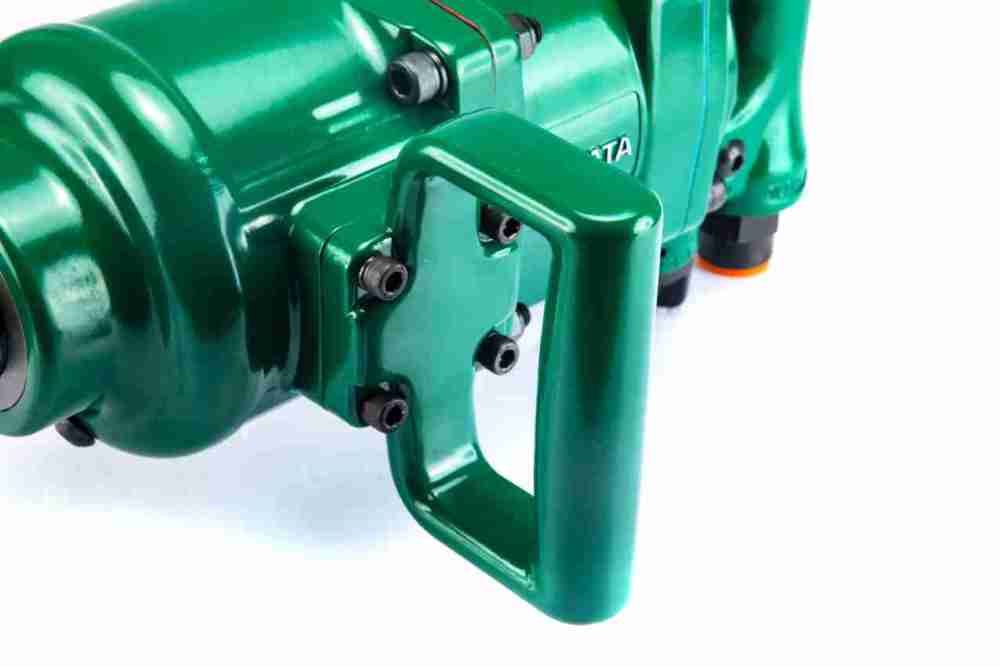

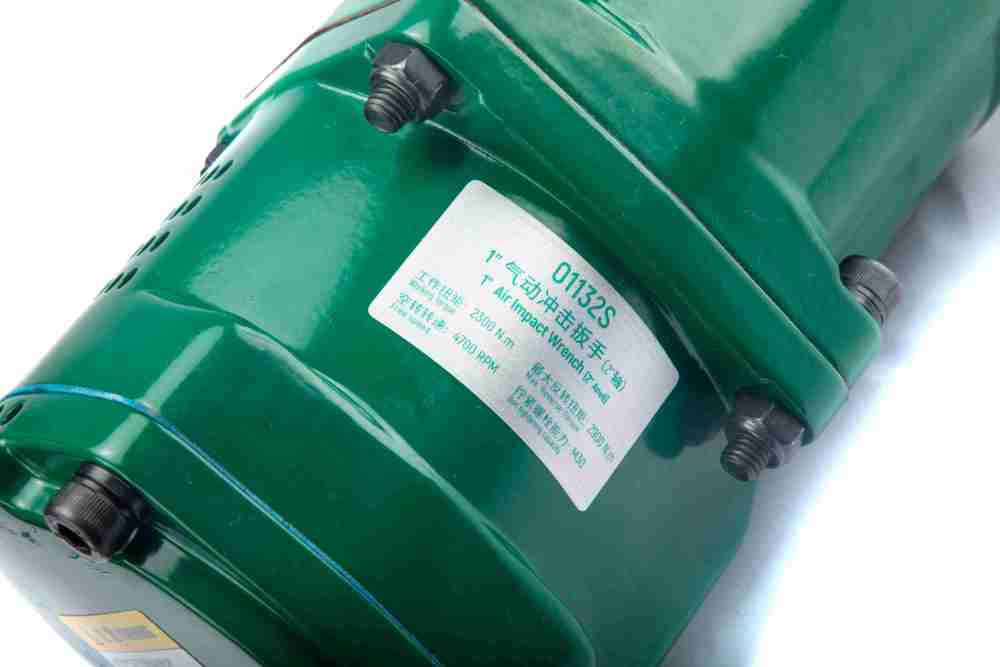

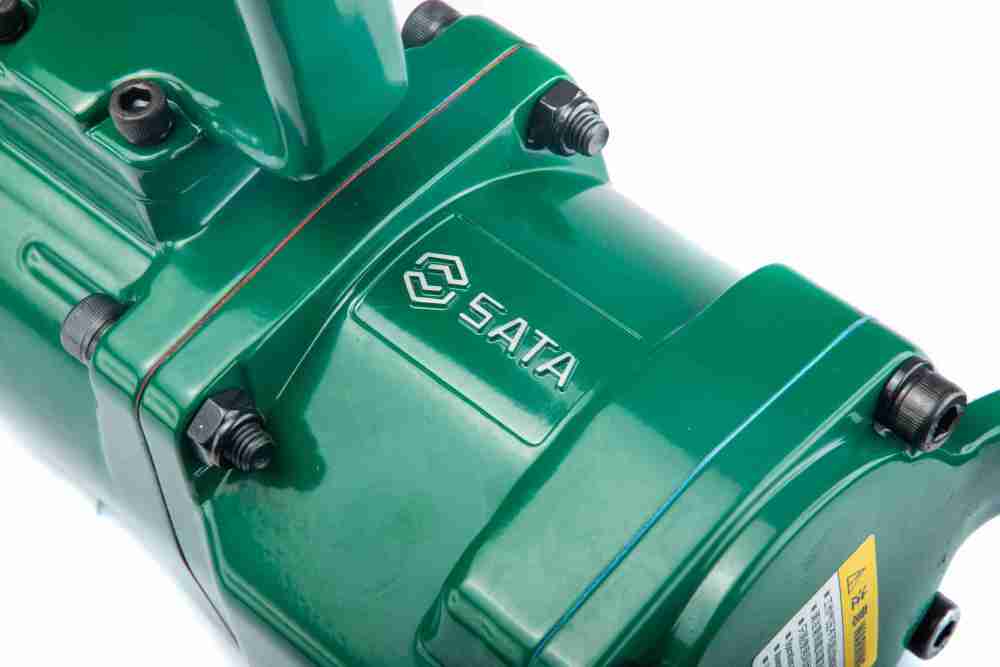

01132S SATA 1" Air Impact Wrench (2" Anvil)
No.01132S
SKU: SC01132S
Introduction
| ● | Maximum output torque of 2900 N·m, maximum bolt tightening capacity of M33 (S50 socket). | ||||
| ● | Suitable for the removal and installation of tires of large passenger vehicles as well as the removal, installation and repair of large mechanical equipment. | ||||
| ● | Main parts made through the vacuum thermal treatment and ultra-low temperature quenching, featuring high hardness, toughness and wear resistance and long service life. | ||||
| ● | Easy and flexible to use, greatly reducing the labor intensity | ||||
| ● | 8" output shaft (01132) suitable for removal and installation of tires of large passenger vehicles | ||||

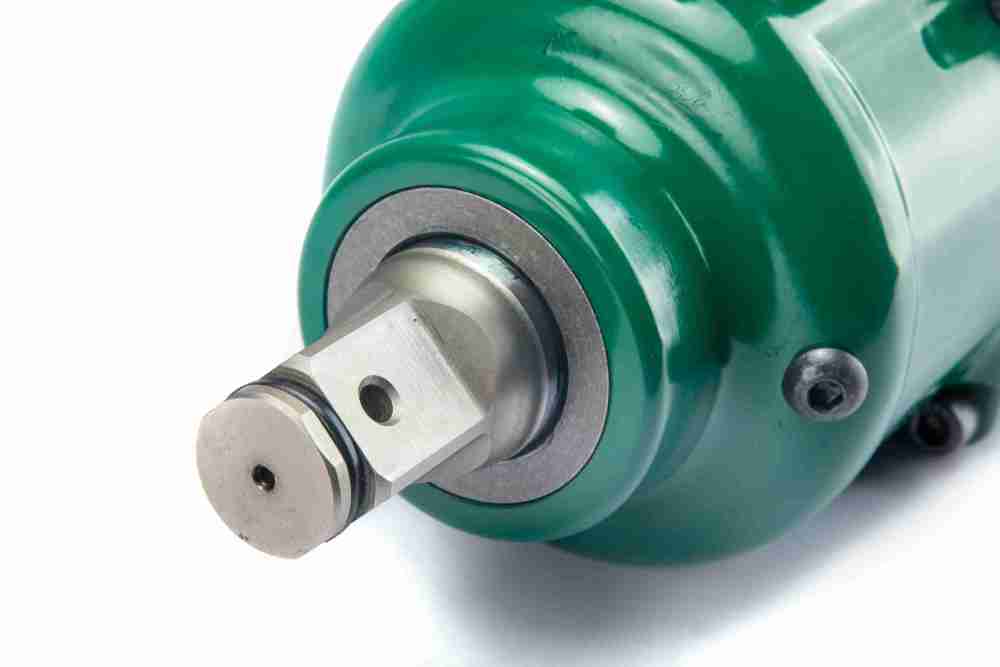

| ● | 2" output shaft (01132S) suitable for operation in a confined space |
(0 Reviews)
| Product No | 01132S |
| Length（mm） | 384 |
| Width（mm） | 123.5 |
| Height（mm） | 176 |
| Net Weight（kg） | 11.4 |
| Air Inlet Size | 1/2" |
| Minimum endotracheal diameter（mm） | 12.5 |
| Working air pressure（KGF/CM2） | 8 |
| Warranty Terms | Three months warranty, pneumatic tools warranty terms, please see 'Introduction' |
| Special note | Noise level is A sound pressure level. Working pressure refers to the dynamic pressure measured at the product inlet when the product is idling. Tightening bolt capacity refers to standard torque that meets the specifications of DIN267 grade 8.8 bolts |
| MADE IN | China |
| Output specification | 1"square-head |
| Operating torque（N·M） | 2300 |
| Maximum reverse torque（N·M） | 2900 |
| Idle speed（RPM） | 4700 |
| Tightening bolt capacity | M33 |
| Output shaft length | 2" |
| Average air consumption（CFM） | 16 |
| Noise level dB（A） | 110 |
